Coded UI Walkabout Part 2

Back to Test Builder, only this time click on the cross-hairs icon and drag to the search results in the IE window, so that only the hyperlink text for the first result is highlighted:

highlight first element in google search results

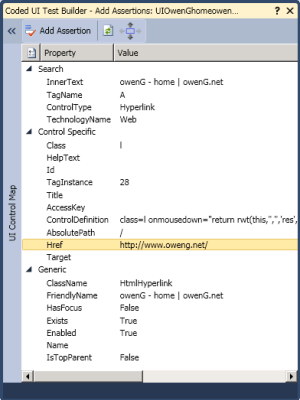

The Add Assertions dialog appears, listing the property/value combinations that can be used in determining whether or not the expected results have appeared on-screen = has this step in the test passed or not.

Add Assertions dialog

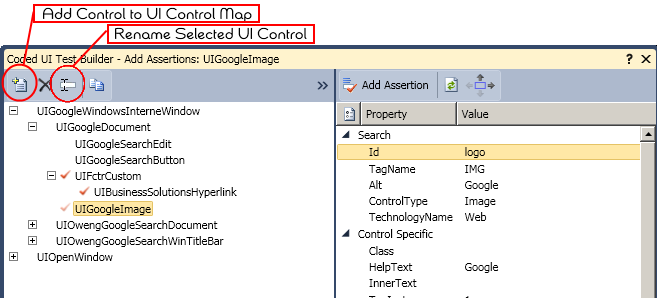

You can choose to add multiple controls to the UI map simply by repeatedly dragging the cross-hairs to each control and pressing the icon for 'Add Control to UI Control Map' (or Alt + C) in the UI Control Map section of the Add Assertions dialog. You do not need to add individual assertions for a given control at this point, and can choose instead to do so programatically, at a later point. The section of the Add Assertions dialog mentioned above also allows for the renaming of the control, from the auto-generated version to something more programmer-friendly. You may need to double click the << chevrons on the main portion of Add Assertions window in order to display the UI Control map.


Apparently Microsoft may at some point release a power tool for being able to add all of the controls on a given web page (or other UI) at once, with a single click.

I'm going to select the Href property in the Control Specific section of the property list and then click 'Add Assertion' item (or press Alt+A). Now I'm presented with a drop-down of Comparators along with the string against which the run-time values should later be compared.

The available Comparator values are:

The Comparison Value in this instance defaults to the current href value of the selected element, "http://www.oweng.net/", but is fully editable. For my purposes I will select Contains as the Comparator and whittle down the text to ".oweng.net". A more accurate test could be done using a regular expression pattern along with the Matches Comparator, but Contains is good enough for a first pass. Also, I don't care to which particular page the link is pointing, as long as it is in oweng.net.

Type of assertion

Click OK to add the assertion and close the 'Add Assertions' dialog. Next, click Generate Code icon and enter AssertFirstLinkContains_owengDOTnet as its name (the period character, along with a number of other special characters, are prohibited here - they are after all, method names). Close the Test Builder and get readyy for a quick test run.

Within VisualStudio the Coded UI Test(s) have been added to a file/class named CodedUITest1, said class marked with the [CodedUITest] attribute. The first thing I'll do is rename the container CodedUITest1.cs file to GoogleSearchOweng.cs and allow all references to be renamed, simply to make everything more obvious should I continue to add Coded UI tests to this project. Within this .cs file a number separate test methods have been created and then called by the main entry method, CodedUITestMethod1. This method gets marked with a [TestMethod] attribute.

    public void CodedUITestMethod1()
        // To generate code for this test, select "Generate Code for Coded UI Test" from the shortcut...
        // For more information on generated code, see http://go.microsoft.com/fwlink/?LinkId=179463

Since there is only one test in this class, I will choose to run by right-clicking somewhere in GoogleSearchOweng.cs and selecting 'Run Tests'. A new IE window opens, the expected steps are carried out, and the full test passes. A failure in the href value check would have failed the test.

Test Run Passes

Now I realize one of original test steps, where IE was supposed to have been closed as a final step. Easy enough to fix, first go back to CodedUITestMethod1 and create a new line directly after

    //add step for closing IE

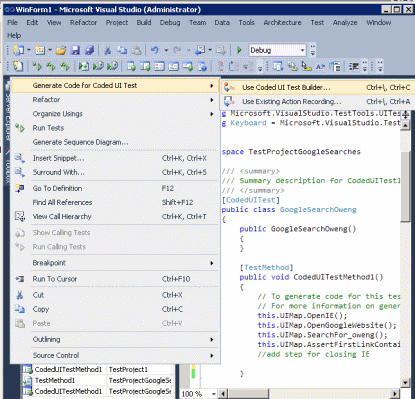

Right-click on the new line and move up in the context menu, to 'Generate Code for Coded UI Test', and select 'Use Coded UI Test Builder' from the sub-menu on the right.

Add New Step

The Test Builder starts again, make sure the IE window is visible and click Record button. Close IE by clicking on the x in the upper right-hand corner, Generate Code and save in a CloseIE method. Close Test Builder and see the new call to this.UIMap.CloseIE(). method in GoogleSearchOweng.cs, inserted directly at right-click point. Action has been coded as a click on x,y coordinates of (6,5), which makes sense as a location relative to the 'closing' control on the title bar for IE - i.e. the x, the closing control.

Run test again, confirm test still passes.

Next step in improving the test will be to make it more isolated, by ensuring that Internet Explorer is not already open and running before the test run begins. After adding a using directive to GoogleSearchOweng.cs to include System.Diagnostics namespace, can access the Process object via a newly added method.

        public void InitializationForTest()
            foreach (Process proc in Process.GetProcessesByName("iexplore"))

This method is decorated with the TestInitialize attribute, which means it will run before every test within the containing class. This approach is appropriate here, since I'm planning on having only IE related tests in this class. An alternative would have been to keep the method attributeless and call directly in the first line of CodedUITestMethod1(). Other method-level attributes that are useful in CodedUI tests include [ClassInitialize] and [ClassCleanup], where methods marked thusly will run before/after ALL tests in a given class.

Next, Testing the Test ...
